12V - 3V DC-DC Converter

12V - 3V DC-DC Converter

This product is designed to provide 12V to 03V regulated voltage conversion for heavy duty applications.
Model No: DLS-1203DC
Input Voltage: 12V DC
Output Voltage: 3V DC
Output Current (A): 3,5,8,10,12,15,18,20 A

Download Datasheet
12V - 12V DC-DC Converter

12V - 12V DC-DC Converter

High efficiency, high precision regulated power supply unit. Wide input voltage range, with over-current and over-voltage protection function. This product is designed to provide 12V to 12V power conversion for heavy duty applications in vehicle.
Model No: DLS-1212DC
Input Voltage: 12V DC
Output Voltage: 12V DC
Output Current (A): 1,3,5,8,10 A

Download Datasheet
12V - 24V DC-DC Converter

12V - 24V DC-DC Converter

This product is designed to provide 12V to 24V power conversion for heavy duty applications. High efficiency, high precision DC to DC Converter unit. Wide input voltage range, with over-current and over-voltage protection function.
Model No: DLS-1224DC
Input Voltage: 10V DC to 16V DC
Output Voltage: 24V DC
Output Current (A): 1,3,5,8,10 A

Download Datasheet
24V - 5V DC-DC Converter

24V - 5V DC-DC Converter

This product is designed to provide 24V to 5V power conversion for heavy duty applications. High efficiency, high precision DC–DC Converter unit. Wide input voltage range,with over-current protection function.
Model No: DLS-2405DC Series
Input Voltage: 24V DC
Output Voltage: 5V DC
Output Current (A): 3, 5, 8, 10, 12, 15 A

Download Datasheet
24V - 12V DC-DC Voltage Converter

24V - 12V DC-DC Converter

This product is designed to provide 24V to 12V power conversion for heavy duty applications in vehicle. High efficiency, high precision DC to DC Converter unit. Wide input voltage range, with over-current and over-voltage protection function.
Model No: DLS-2412DC
Input Voltage: 24V DC
Output Voltage: 12V DC
Output Current (A): 3, 5, 8, 10 A

Download Datasheet
24V - 48V DC-DC Converter

24V - 48V DC-DC Converter

This product is designed to provide 24V to 48V power conversion for heavy duty applications. High efficiency, high precision DC–DC Voltage Converter unit. Wide input voltage range,with over-current protection function.
Model No: DLS-2448DC
Input Voltage: 24V DC
Output Voltage: 48V DC
Output Current (A): 1, 3, 5, 8 A

Download Datasheet

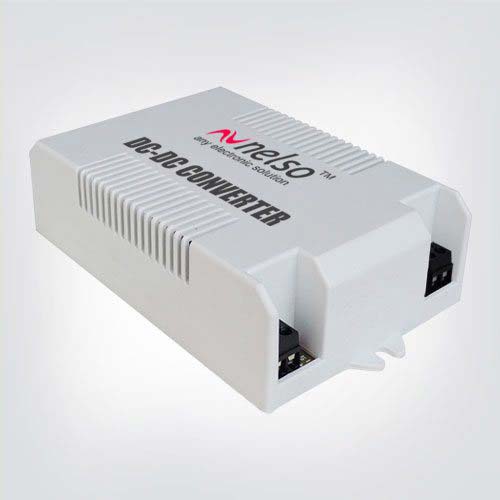

48-12V DC-DC Converter

48V - 12V DC-DC Converter

This product is designed to provide 48V to 12V power conversion for heavy duty applications. High efficiency, high precision DC to DC SMPS unit. Wide input voltage range, with over-current and over-voltage protection function.
Model No: DLS-4812DC
Input Voltage: 38-62V DC
Output Voltage: 12V DC
Output Current (A): 1, 3, 5, 8, 10, 12 A

Download Datasheet
48V - 12V Battery Charger

48V - 12V Battery Charger

This product is designed charge 12V battery from 48V DC Power Supply. High efficiency, Battery Charging unit. Wide input voltage range, with over-current and over-voltage protection function.
Model No: DLS-4812BC
Input Voltage: 48V DC
Output Voltage: 13.8V DC
Output Current (A): 1, 3, 5, 8, 10, 12 A

Download Datasheet
48V - 24V DC-DC Converter

48V - 24V DC-DC Converter

This product is designed to provide 48V to 24V power conversion for heavy duty applications. High efficiency, high precision DC to DC Voltage Converter unit (SMPS). Wide input voltage range, with over-current and over/under voltage protection function.
Model No: DLS-4824DC
Input Voltage: 38-62V DC
Output Voltage: 24V DC
Output Current (A): 1, 3, 5, 8, 10 A

Download Datasheet
110V - 12V DC-DC Converter

110V - 12V DC-DC Converter

This product is designed to provide 110V to 12V power conversion for heavy duty applications. High efficiency, high precision DC to DC Converter unit. Wide input voltage range, with over-current and over/under voltage protection function.
Model No: DLS-11012DC
Input Voltage: 100-130V DC
Output Voltage: 12V DC
Output Current (A): 1,3, 5, 8, 10, 12 A

Download Datasheet
110V - 20V DC-DC Converter

110V - 20V DC-DC Converter

This product is designed to provide 110V to 20V power conversion for heavy duty applications. High efficiency, high precision DC to DC Converter unit. Wide input voltage range, with over-current and over/under voltage protection function.
Model No: DLS-11020DC
Input Voltage: 100-130V DC
Output Voltage: 20V DC
Output Current (A): 3, 5, 8,10,12 A

Download Datasheet

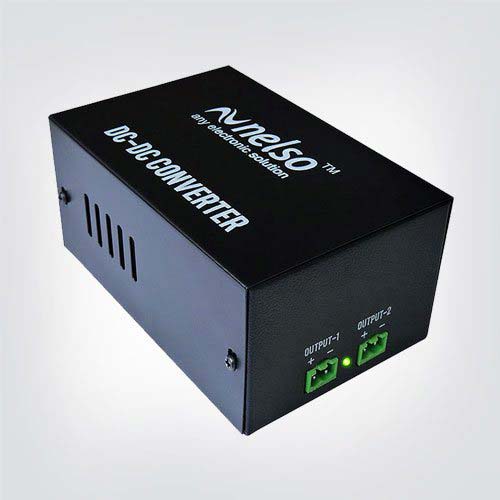

110V - 24V DC-DC Converter

110V - 24V DC-DC Converter

This product is designed to provide 110V to 24V power conversion for heavy duty applications. High efficiency, high precision DC to DC Converter unit. Wide input voltage range, with over-current and over-voltage protection function.
Model No: DLS-11024DC
Input Voltage: 110V DC
Output Voltage: 24V DC
Output Current (A): 1, 3, 5, 8, 10, 12 A

Download Datasheet
