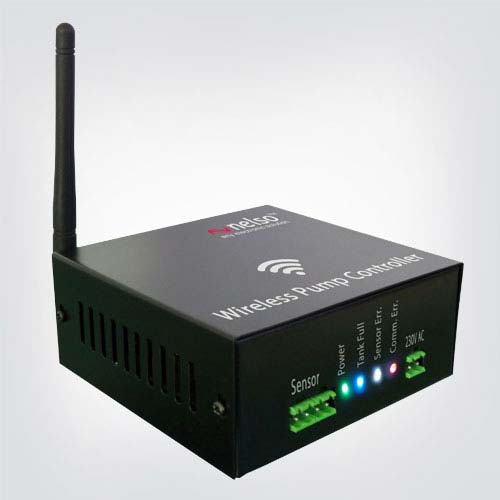

Wireless Automatic Water Pump Controller
Nelso is manufacturer of wireless automatic pump controller(Wi-Pump) for home and industry. It will monitor water level of tank and reservoir and control the pump automatically as required. This auto-switching feature saves manpower. Hence no need to operate manually. Our system switches the pump when the level of water in the tank goes below LOW level and OFF when the water exceeds the HIGH level. Thus no wastage of water and can save electricity bill and water charges. It has two units, one master and one slave unit. Slave unit monitors the level of water inside the tank and inform the master unit wirelessly and the master unit monitors water level of reservoir and control the pump as required.
Where to buyApplication Area
Domestic
Bungalows
Multi-storied apartments
Hospitals
Factories
Hotels and restaurants
Commercial centers All places with water tank
Technical Specification
Wireless Frequency | 867 MHz. |
Supply Voltage | 230 V AC, 50 Hz. |
Internal Voltage | 12V DC |
Output | 2 potential free relay contact |
Contact rating | 23 Amp. for Pump On relay and 7 Amp. Pump Off relay |
Power Consumption | 1.2 Watt |
Monthly Consumption | 1 Unit |
Temperature | -20 to + 70 degree Celsius |
Dimension | 123mm * 123mm * 50mm. |
Weight | 600 gm. |
Brief Description of Water Pump Controller
Switches ON the pump when the water in the overhead tank goes below the pre-decided minimum level.
Switches OFF the pump when the water level in the overhead tank reaches the maximum level therefore prevents overflow.
Shall again switch ON the pump when there is sufficient water in the underground tank.
Therefore no need to switch ON or switch OFF the pump manually.
No more Overflow or Dry run thus saving water electricity & manpower.
