Single Phase GSM Mobile Operated Pump Motor Controller

We are the first Indian manufacturer of IoT(Internet of Things) based Mobile Operated Pump Controller. SMS or GSM Remote Pump Controller is a device which can control and monitor electric motors, agriculture pump or submersible pump sets through mobile phone. This is a GSM-based mobile operated pump controller to switch ON and OFF pump sets or an electric motor with a cell phone from a remote location. Download free android application. This SMS or GSM pump motor controller helps the farmer to handle agricultural pump sets easily. The farmer can set up to five schedules for automatically turning On and Off the pump. It also helps the farmers to save a life from snake bite in the night time, saves water, time and electricity. One SIM Card is required for its operation.

  • This GSM Pump Controller is compatible with any single phase pump including submersible pump.
  • IoT based control for smooth operation.
  • Unlimited users can operate the pump from Android App.
  • Register five users to get notification via SMS.
  • Five On/Off schedules can be set.
  • Set Password to protect from unauthorised access.
  • Over and under voltage protection.
  • Dry run protection.
  • Overhead tank full detection to stop tank overflow.
  • Internal battery backup (Optional) AC power status notification through SMS.
  • One year warranty
  • 7 Days Replacement

  • 3,7907,990 52% Off

    Free Delivery
    Cash On Delivery (COD) Available

    Also Include

    Include internal battery backup

    300.00500.00
    40% Off

    Rating & Reviews

    Android App Demo - Hindi

    Installation - Hindi

    Installation - English

    SMS or GSM Pump Controller Application Area

    Agriculture

    Industry

    Factories

    Technical Specification

    Network GSM/GPRS
    Band Quad-band: EGSM 900 / DCS 1800 and GSM 850 / PCS 1900 Mhz
    Transmitting Power Class 4 (2W) at EGSM 900 / GSM 850
    Class 1 (1W) at DCS 1800 / PCS 1900
    Supply Voltage Single Phase 85-270V AC, 50 Hz.
    Internal Voltage 12V DC
    Output 3 potential free relay contact
    Contact rating 20 Amp. for RL1 and RL2 relay and 7 Amp. RL3 relay
    Power Consumption 1.2 Watt
    Monthly Consumption 1 Unit
    Temperature -20 to + 70 degree Celsius
    Dimension 287mm * 158mm * 62mm.
    Weight 700 gm.

    Brief Description of SMS or GSM Pump Controller

    220V AC required to operate the controller.

    Switch ON/OFF agriculture pump set through "MISSED CALL" or "SMS" from cell phone.

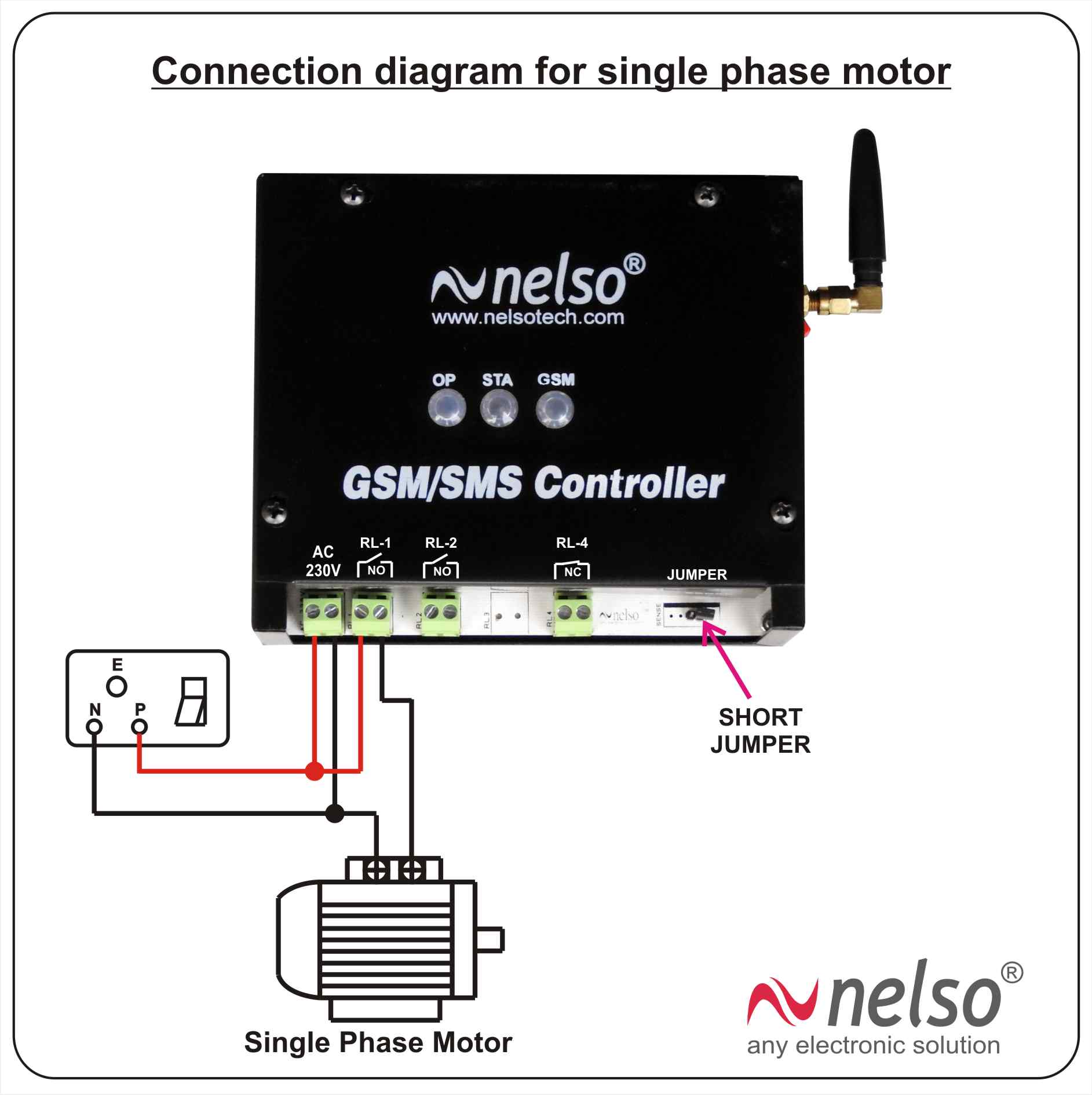

    Suitable for any electric motors(Single Phase, Three Phase or Submersible Pump).

    Suitable for all type of Starters and MCB Panel.

    Control from 5 user's mobile phone.

    Five schedule timer for automatic pump On/Off.

    AC main line status notification through SMS.

    Over and under voltage protection.

    Dry run protection(Optional).

    Internal battery backup (Optional) AC power status notification through SMS.

    Configurable via SMS.

    Download

    Android application   Download

    User Manual of NTSMS-P105 Single Phase GSM Pump Controller   Download
